Multi-Ply Fabric Conveyor Belt
Huadu is an industrial rubber conveyor belt that offers three kinds of Multi-ply conveyor belt. Our conveyor belt factory in China offers the cotton fabric, Ep fabric, nylon fabric inside.
Huadu Multi-ply Fabric conveyor belts have been supplied to a wide range of applications. From mine to port, power plants to cement, chemicals, fertilizers and agribusiness, the performance is proven in many different industries.
Description of Fabric conveyor belt
Fabric conveyor belts are a type of conveyor belt that is made of multiple layers of fabric material such as cotton,polyester or nylon that are coated with rubber. These conveyor belts are commonly used in industrial applications to transport heavy materials from one location to another.
![](https://conveyora.com/wp-content/uploads/2023/05/cc-56-.jpg)
cotton cc56 rubber conveyor belt
- cost-effective
- Lower tensile strength
- Good impact resistance
- CC56 rubber conveyor belts have a lower tensile strength compared to nylon and EP conveyor belts, Cost-effective.
![](https://conveyora.com/wp-content/uploads/2023/05/multiply-ep-rubebr-conveyor-belt-1820290_conew1.jpg)
Nylon rubber conveyor belt
- Highly flexible
- Highly resistant againstimpact.
- Highly bendable.
- Nylon conveyor belts have better abrasion resistance compared to CC56 and EP rubber conveyor belts.
![](https://conveyora.com/wp-content/uploads/2023/05/EP.jpg)
Polyester EP rubber conveyor belt
- Less elongation.
- Less deformed by heat.
- Less affected by moisture.
- EP conveyor belts have better impact resistance compared to CC56 and nylon rubber conveyor belts.
Download the catalogue
Fabric conveyor belt Structure
![](https://conveyora.com/wp-content/uploads/2023/06/输送带标准图片.jpg)
Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA | DIN-X,Y,W RMA-1,RMA-2 N17,M24 |
---|---|---|
Belt width (mm) | 500,600.650,700,800,1000,1200 1400,1500,1800,2000,2200,2500 | 18",20",24",30",36",40",42" 48",60",72",78",86",94" |
Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4 EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6 | 330PIW, 440PIW |
Top+Bottom thickness | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5mm | 3+1.5, 4+2, 4+1.5, 4+3, 5+1.5mm |
Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm | |
Belt length | 10m,20m,50m,100m,200m,250m,300m,500m | |
Belt edge type | moulded(sealed) edge or cut edge |
Conveyor belt adhesion test
conveyor belt will be tested for tensile strength, abrasionresistance and adhesion before leaving the factory to determinewhether the conveyor belt meets customer requirements.

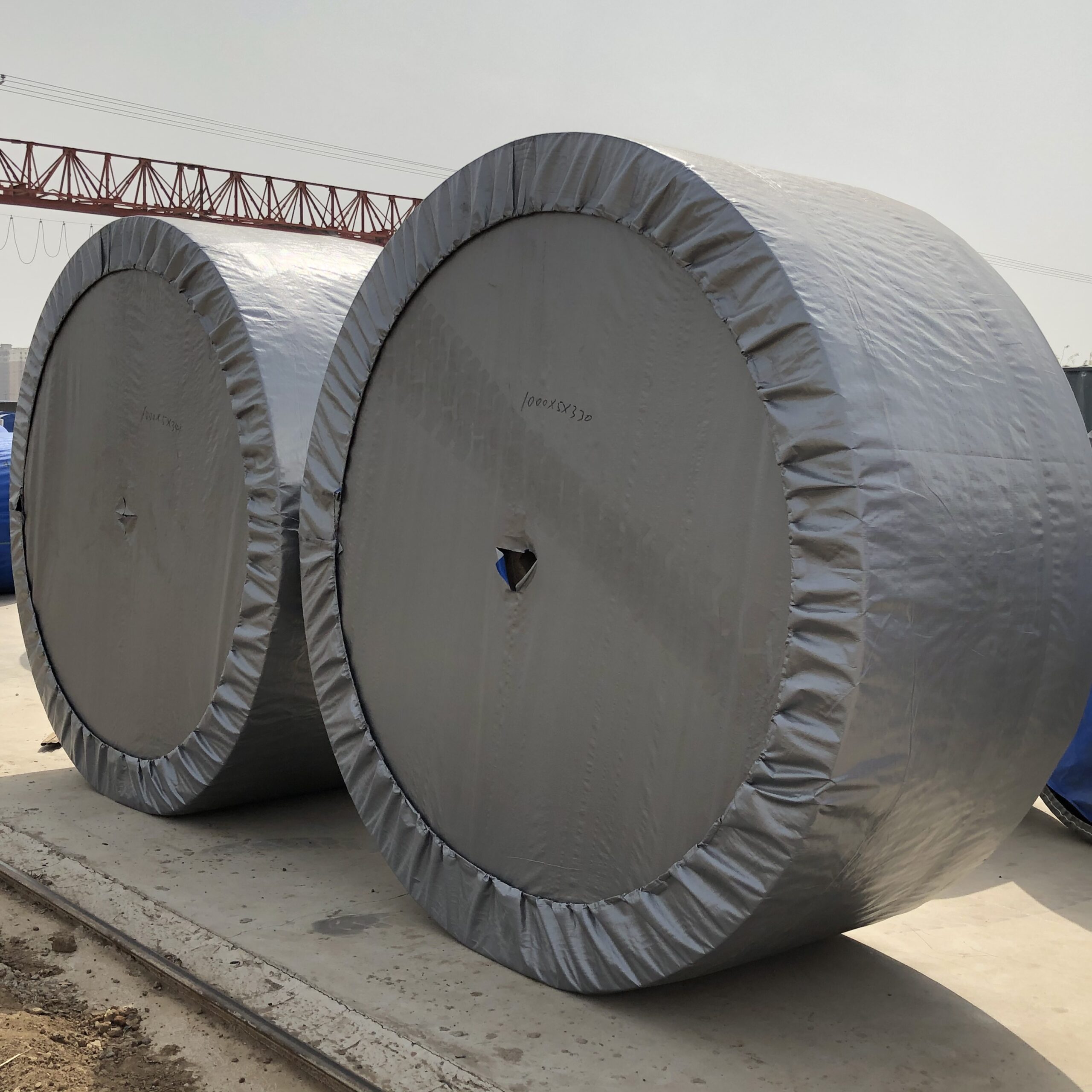

Conveyor belt package and shipping
![IMG_5495 IMG_5495](https://conveyora.com/wp-content/uploads/elementor/thumbs/IMG_5495-scaled-q81h6dadbao1hw9wab7yqyhgycxi4bfxr5fc1xdg94.jpg)
Huadu will provide packaging advice based on the type of conveyorbelt you ordered.our conveyor belt provides three packagingmethods: round roll,glasses roll & oval roll.Conveyor belt outsourcing pp tarpaulin, color can be customized, andalso provide pallet (wood/metal) and iron frame options.
We usual shiped the order out within 15-20 days!
All You Need To Know About Fabric conveyor belt
Fabric conveyor belts are widely used in various industries for the transportation of materials. These conveyor belts are made of different materials, such as cotton, nylon, and polyester, which are coated with rubber to provide grip and traction.
The advantages of fabric conveyor belts include their high tensile strength, good abrasion resistance, and flexibility. They are also cost-effective and can be customized to meet the specific needs of different industries.
To ensure the longevity and effectiveness of fabric conveyor belts, proper maintenance is crucial. This includes regular cleaning, inspection, and lubrication of the conveyor system. It is also important to choose the right type of fabric conveyor belt for the specific application, taking into account factors such as load capacity, speed, and environmental conditions.
![customizable-factory-nylon-conveyor-belt52153601363 customizable-factory-nylon-conveyor-belt52153601363](https://conveyora.com/wp-content/uploads/elementor/thumbs/customizable-factory-nylon-conveyor-belt52153601363-q6mxm8pb8z8u4gu0spdxqrwruinctrt8bm6pg3h374.jpg)
![Application_conew1 Application_conew1](https://conveyora.com/wp-content/uploads/elementor/thumbs/Application_conew1-q77uuhafllbxyuzg0cjmsl4oqg5s5aedgjah2rygz4.jpg)

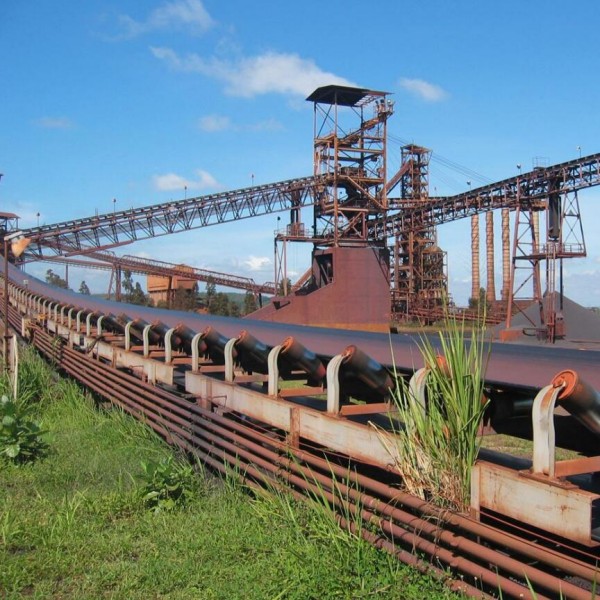

What Are Fabric conveyor belt Used For?
(1) General Purpose
(2) Abrasion Resistance
(3) Heat Resistance
(4)Oil Resistance
(5) Fire Resistance
(6) Chemical Resistance
(7) Anti-Static
A Brief Self-Nomination, Why Choose Huadu
- Over 20 years of rubber conveyor belt manufacturing experience
- All rubber conveyor belt Meet and exceed ISO:9001 standards
- Complying criteria as DIN-22102 , AS-132, RMA,SANS-1173,BS-490
standards. - Flame resistant conveyor belt tested and certified with SGS
- One-Year Quality Guarantee, reply in 2 hours.
The FAQs About rubber conveyor belt
1) Can I get one sample to test?
Yes, No problem free samples, just need you bear the shipping cost.
The sample cost can be refundable after order confirmation.
2) What is the delivery time after payment?
1. 3-5 days for sample
2. 15-20 days for mass production. If urgent,we have green channel, can do within 10 days
3) Can I custom my logo and appoint the color on the product?
Yes,just offer me your logo design with format so that our designer will make adisplay for your reference
4) How about package?
1. Inner is packed on round rubber core with 30cm diameter and 12cmx12cmsquare hole
2. Outer is packed with one ply water-proof Pp fabric
5) Can you support customized
Yes, we can support customized conveyor belt width, thickness, length
6) waht's the MOQ
Support low MOQ, like 10 meter per roll
